Why Is Water Leaking From My AC?
If water is leaking around your indoor AC unit, the problem may be a clogged drain line, frozen coil, dirty filter, drain pan issue, or condensate pump problem.
Water Leaking From AC in Oviedo, FL?

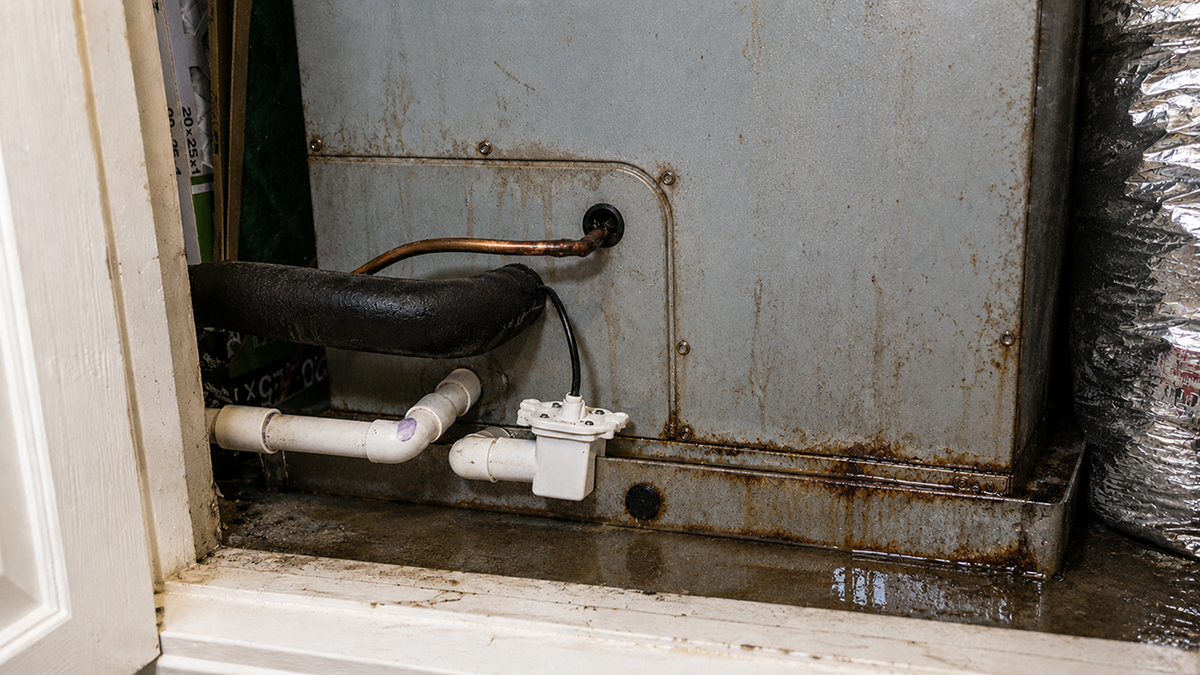

Water around the indoor AC unit usually means the system is producing condensation that is not draining correctly, or ice has formed on the coil and is melting faster than the drain system can handle.
The most common causes include a clogged condensate drain line, frozen evaporator coil, dirty air filter, rusted drain pan, disconnected drain piping, or condensate pump problem. Because water can damage ceilings, walls, flooring, and nearby equipment, this is not something to ignore.
If your AC is leaking water in Oviedo, FL, turn the system off if water is actively leaking and call (321) 343-3776 for AC leak troubleshooting.
Common Reasons an AC Leaks Water
Your air conditioner removes humidity from indoor air as it cools the home. That moisture normally collects on the evaporator coil, drips into a drain pan, and leaves the home through the condensate drain line.
When that drainage path is blocked, damaged, or overwhelmed, water can back up and leak around the indoor unit. A frozen coil can also create water problems when the ice melts.
- Clogged drain line: Water cannot leave the air handler properly.
- Frozen evaporator coil: Melting ice can overwhelm the drain pan.
- Dirty air filter: Low airflow can contribute to coil freezing.
- Drain pan issue: A rusted, cracked, or shifted pan can leak.
- Condensate pump problem: Pump failure can stop water from being removed.

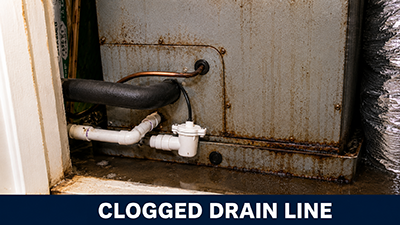

Clogged Condensate Drain Line
A clogged condensate drain line is one of the most common reasons an AC leaks water. As the system removes humidity from the air, water collects in the drain pan and should flow out through the drain line.
Over time, algae, sludge, dust, and debris can block the drain. When water cannot leave the system, it may back up into the pan, trigger a safety switch, or leak around the indoor unit.
If water is collecting near the air handler or the system keeps shutting off, call (321) 343-3776 for drain line troubleshooting in Oviedo, FL.

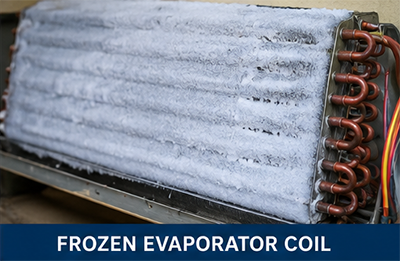

Frozen Evaporator Coil Melting
A frozen evaporator coil can also cause water around the indoor AC unit. When ice builds up on the coil or refrigerant lines, the system may stop draining normally.
After the system turns off, the ice begins to melt. If there is a large amount of ice, the water may overflow the drain pan or drip into areas that are not designed to handle that much water at once.
If you see ice and water around the air handler, keep the cooling system off and have the frozen coil checked before running the AC again.
Dirty Air Filter or Low Airflow
A dirty air filter does not usually leak water by itself, but it can restrict airflow enough to make the evaporator coil freeze. Once the frozen coil thaws, water may appear around the indoor unit.
Low airflow can also come from blocked returns, dirty indoor equipment, duct problems, or blower issues. When airflow drops too low, the coil can become too cold and ice can begin forming.
If the filter is dirty, replace it. If water or ice returns after the filter is changed, the system needs a closer inspection.

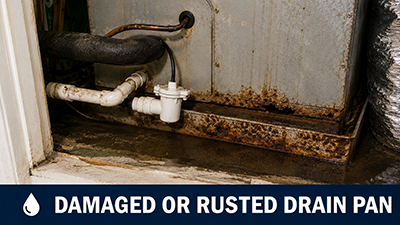

Damaged or Rusted Drain Pan
The drain pan collects condensation from the indoor coil and directs it toward the drain line. If the pan is rusted, cracked, shifted, or damaged, water may leak even when the drain line is open.
Older systems are more likely to have drain pan problems, especially in humid areas where the AC runs for long periods. A pan issue may show up as slow dripping, staining, rust marks, or water collecting under the air handler.
If the pan is damaged, the leak needs to be corrected before it causes additional water damage around the unit.

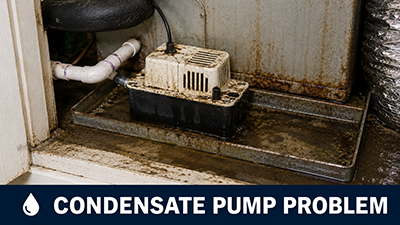

Condensate Pump Problem
Some AC systems use a condensate pump to move water away from the indoor unit. If the pump fails, loses power, becomes clogged, or cannot discharge properly, water may collect near the unit.
A condensate pump problem may cause the system to shut off, overflow, or leak depending on how the system is installed. Pump issues are especially important when the air handler is in a closet, attic, garage, or interior space.
If your system uses a condensate pump and water is collecting nearby, the pump and drain path should be checked.
When an AC Water Leak Needs Immediate Attention
Water can spread quickly from an indoor AC unit, especially if the air handler is in an attic, closet, hallway, or finished area of the home. Even a small leak can damage drywall, flooring, insulation, ceilings, or nearby electrical components.
If water is actively leaking, turn the cooling system off and avoid running it until the source of the leak is found. If the system has a float switch or drain safety switch, do not keep resetting it without correcting the cause.
Why AC Water Leaks Happen Often in Oviedo
Air conditioners in Oviedo, FL remove a lot of humidity during long cooling seasons. That means the condensate drain system has to handle steady water production for much of the year.
Warm weather, high humidity, attic installations, algae growth, and long run times can make drain line clogs and water leaks more likely. A system that looks fine one week may start leaking during heavy summer use.
Keeping the drain system clear and correcting airflow or coil problems early can help prevent repeat water leaks and larger damage inside the home.
Professional AC Repair for Water Leak Problems
Water leaking from an air conditioner is one of the clearest signs that the system needs professional AC repair. While a clogged condensate drain line is the most common cause, similar symptoms can also be related to a frozen evaporator coil, dirty air filter, damaged drain pan, condensate pump failure, or another airflow or drainage problem.
Our AC repair services in Oviedo, FL include inspecting the condensate drain line, drain pan, float switch, evaporator coil, airflow, condensate pump, and overall system operation to identify the source of the leak before recommending a repair.
If your AC is leaking water, learn more about our complete AC repair process or contact us today to schedule professional troubleshooting.
AC Water Leak Troubleshooting
Problems We Diagnose During AC Repair
Water around the AC is often connected to other cooling system problems. These related pages can help explain what may be happening.
Not sure if this matches what your system is doing? View our full Air Conditioner Problems guide to compare common AC symptoms.
Frozen AC Coil
Ice buildup can melt and cause water to collect around the indoor unit.
Learn About Frozen CoilsAC Blowing Warm Air
Frozen coils and airflow problems can lead to warm air and water around the air handler.
Learn About Warm AirOutdoor Unit Not Running
Outdoor unit failures can sometimes lead to cooling problems, ice buildup, and poor system performance.
Check Outdoor Unit ProblemsLow Refrigerant
Refrigerant-related problems can cause frozen coils, poor cooling, and water after thawing.
Learn About Refrigerant ProblemsNeed Professional AC Repair for Your Oviedo Home or Business?
Water leaking from an AC should be checked before it causes damage to flooring, ceilings, drywall, or nearby equipment. The cause may be simple, but the leak should not be ignored.
Call (321) 343-3776 for AC water leak troubleshooting in Oviedo, FL or request service online.
AC Water Leak Questions
Why is water leaking from my AC?
Water leaking from an air conditioner is often caused by a clogged condensate drain line, frozen evaporator coil, dirty air filter, damaged drain pan, or condensate pump problem.
Is water leaking from my AC an emergency?
Water leaking from an air conditioner should be addressed promptly because it can damage ceilings, flooring, drywall, insulation, and nearby electrical components. If water is actively leaking around the indoor unit, turn the system off until the cause can be identified.
Should I turn my AC off if water is leaking?
If water is actively leaking around the indoor unit, it is usually best to turn the system off until the source of the leak can be identified to prevent water damage.
Can a float switch shut off my AC if water backs up?
Yes. Some systems have a float switch or drain safety switch that can shut the AC off when water backs up in the drain pan or drain line. If the switch trips, the cause of the water backup should be corrected before the system is restarted.
Can a clogged drain line cause water leaks?
Yes. A clogged condensate drain line is one of the most common reasons water leaks from an indoor air handler or furnace cabinet.
Can a frozen AC coil cause water to leak?
Yes. When a frozen evaporator coil thaws, large amounts of water can overwhelm the drain system and leak around the indoor unit.
Who should I call if my AC is leaking water in Oviedo, FL?
Call a local AC repair technician who can inspect the drain line, evaporator coil, drain pan, condensate pump, and airflow conditions to determine the cause of the leak.
